Product Name: 24V Diesel Saving Split Type Truck Parking Air Conditioner Works With Truck Battery Power
1. Main Instruction of Parking Air Conditioner :
Battery powered parking cooler is an auxiliary AC system on vehicles independent from original AC system on vehicles. Parking cooler is powered by vehicle battery and is able to work standalone whenever the engine is running or stopping. In daytime, when vehicles are running, using of parking cooler can improve the effect of cooling together with original AC system. In nights, when vehicles are parking, parking cooler can work standalone to provide a cooling environment to drivers for overnight rest. Reasonable using of parking cooler can save obviously the fuel consumption caused by AC using.
Wide range of applications: Light & heavy duty trucks, construction machinery, agricultural machinery, mobile workshops, and any other equipment with 5-8cbms cooling space.
- Split type air conditioner is more economy
- No need cut hole on cab
- Back mounted or roof mounted both ok.

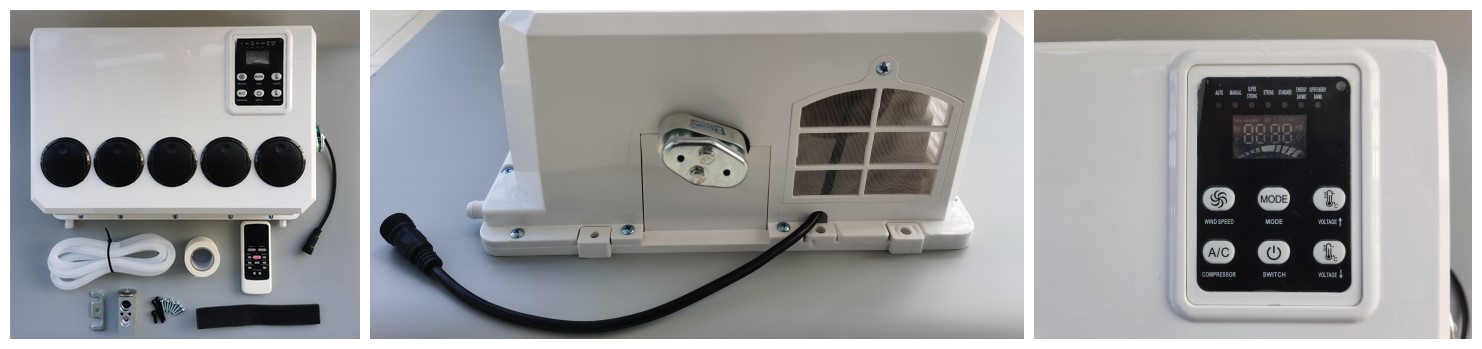

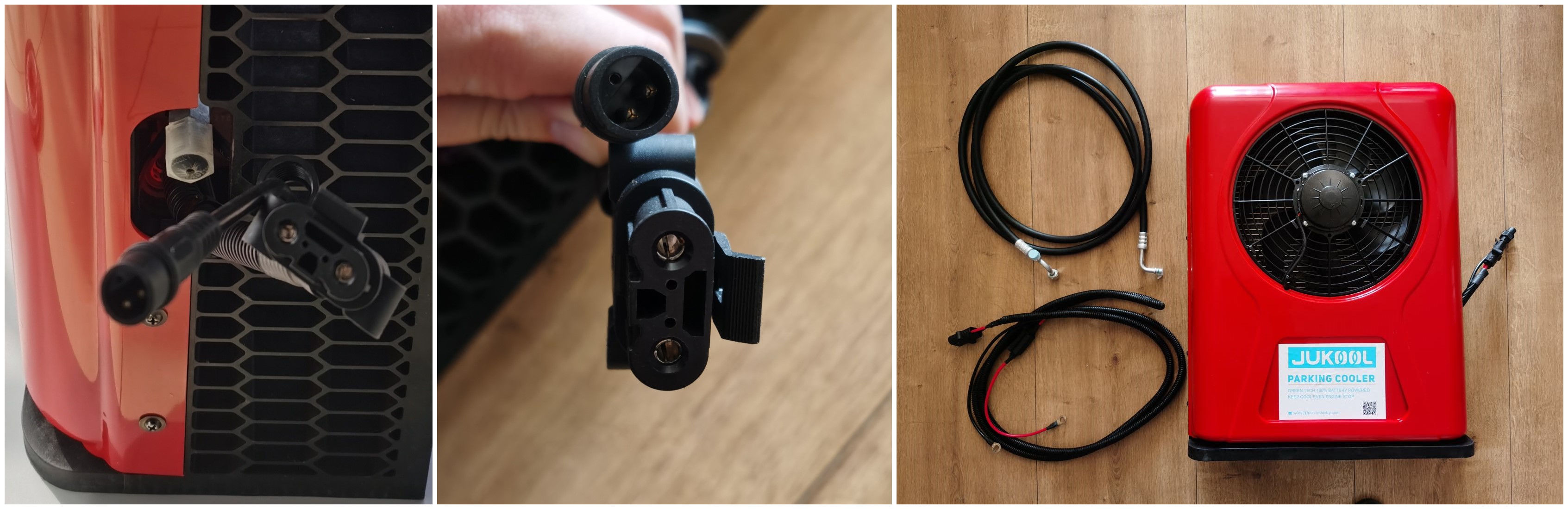

2. Detail Images and Main Components :
3. Main Parameters:
| Model | FT-TAC-PI01 | FT-TAC-PI02 |
| Rated Voltage | DC12V | DC24V |
| Voltage protection | 10V | 21.5V |
| Rated Current | 60-80A | 15A-45A |
| Rated Input | 850W | 950W |
| Rated cooling capacity | 1000-3000W | 1000-300W |
| Refrigerant | R134a | R134a |
| Injection Volume | 600g | 600g |
| Air flow | 600 m3/h | 600 m3/h |
| Compressor | DC scroll frequency conversion | DC scroll frequency conversion |
| Dimension of product | 970*720*165mm | 970*720*165mm |
| Weight | 35kgs | 35kgs |
4. Benefiary of parking air conditioner : Fuel , Energy , Money Saving
| Diesel Price | Fuel Consumption | Idle Time | Average Usage per year |
| $1.3/L | 3.5L/h | average 8h/day | 180days |
| Fuel Saving:$1.3L * 3.5l/h *8h*180days=USD6652.00/year |
5. Quick Installation
- condenser unit mounting :drill screw hole on cab, place the unit and fix it with screw
- evaporator unit mounting with screw
- connect pipe between outside and inside unit
- Vaccum the air conditioner
- fill in refrigerant
- connect air conditioner with truck battery pack
- checking working status and finish assembly

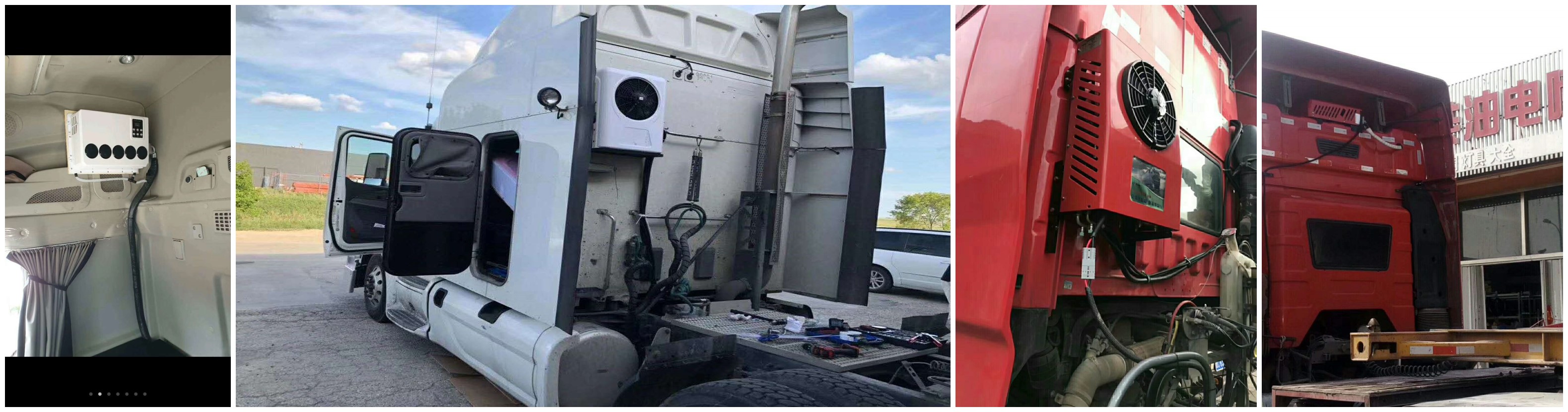

6.Applications
parking air conditioner can be widely used for any vehicle with small cabin, such as truck, caravan, forklift ,crane and other agriculture machine,construction machine and so on.
7. Our Service :
- support customer with formal technical suggestions
- response in 4 hours
- support customer to solve problem referring to our product
- follow custom for installation and after-sales service until no problem left
- support customer to solve any problem related to our products for life time
