120W 50Hz 24V Brushless Air Conditioner Motor

Nanjing Futrun Vehicles Technology Co., Ltd.
Contact Now

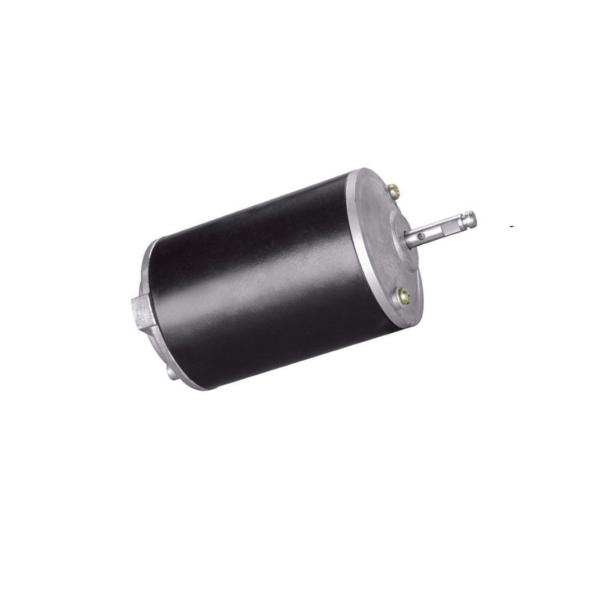

120W 50Hz 24V Brushless Air Conditioner Motor

  • 1
  • 2
  • 3

Brand Name : N/A

Model Number : FT-FAN-2924AD01

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200000 Per month

Delivery Time : 5-10days

Packaging Details : carbon box on pallet

Applications : Bus inner air conditioner

Warranty : 1 year

Power Source : electric power

Voltage : 24V

Load speed : 3000rpm

Current : ≤ 5A

Contact Now

Product Name : 120W, 24V Air Conditioner DC Brushless Motor Air Conditioner Components For AC Unit

1.Main Features :

- long life

- low current

- large air flow

- low noise

- brushless

2. Main Parameters:

Test Voltage DC27V
Standard voltage DC24V
Motor power 120W
Non load current ≤ 0.5A
Load current ≤6A
Vibration 1.5 m/s2
Noise less than 52dBA
Torque ≥ 0.24N.m

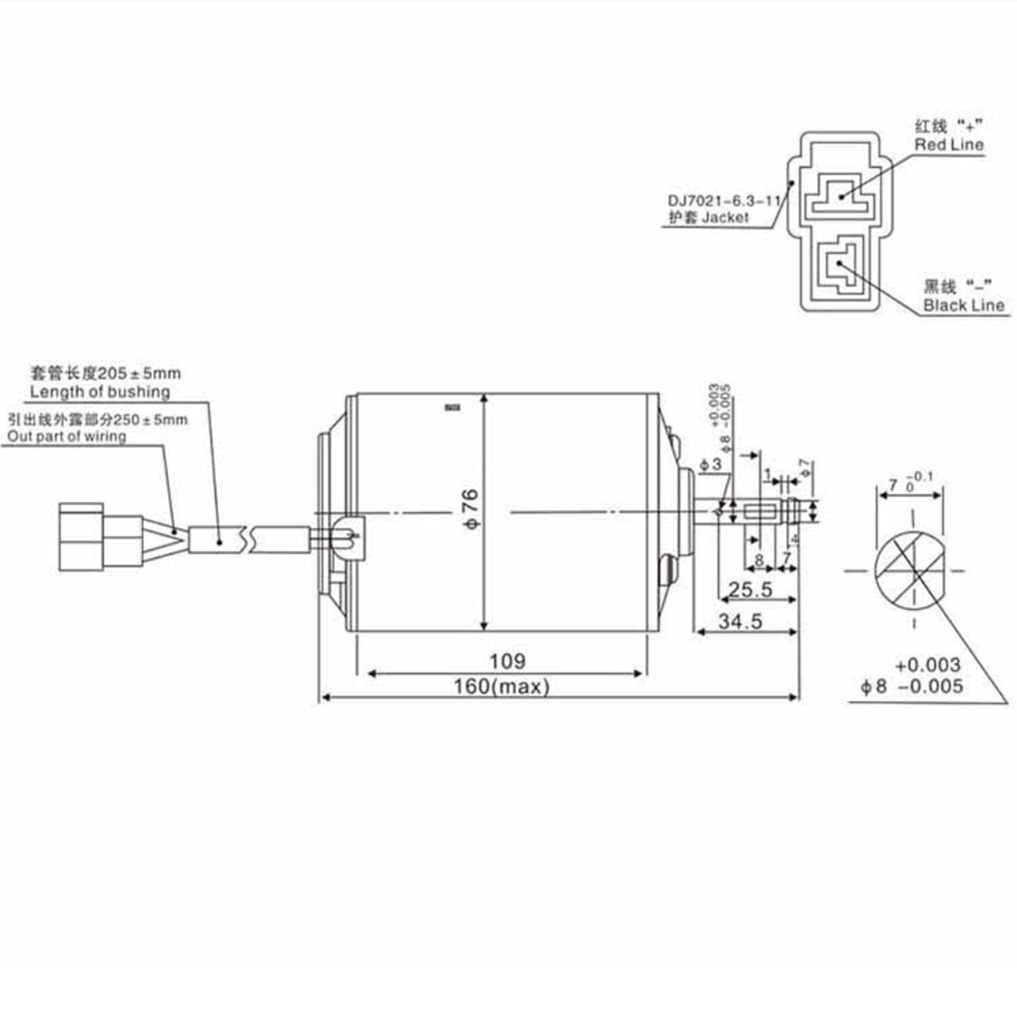

3. Dimension Drawing

120W 50Hz 24V Brushless Air Conditioner Motor

4. Test Facility:

120W 50Hz 24V Brushless Air Conditioner Motor

120W 50Hz 24V Brushless Air Conditioner Motor

5. Our Cetificate:

120W 50Hz 24V Brushless Air Conditioner Motor

6.Our Service :

- support customer with formal technical suggestions

- response in 4 hours

- support customer to solve problem referring to our product

- follow custom for installation and after-sales service until no problem left

- support customer to solve any problem related to our products for life time
